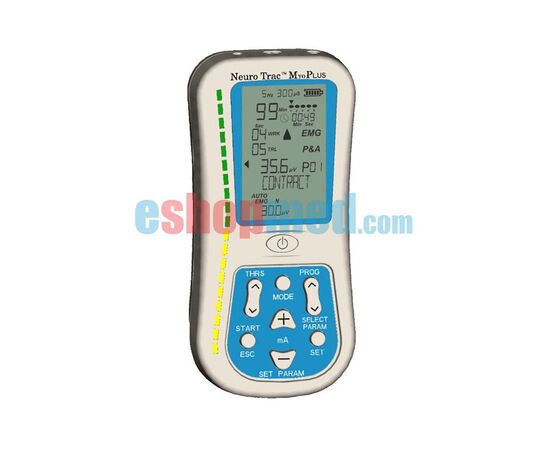

Myoplus 1 Channel Neuromuscular Biofeedback with Electrostimulation

* EMG stands for ElectroMyoGraphy. Biofeedback is a type of EMG conducted with surface adhesive electrodes

Features

Portable desktop device, one dual operation channel for EMG and muscle electrostimulation, supplied with desktop stand

Modes: EMG + electrostimulation (switching between phases of EMG and electrostimulation), EMG with triggered electrostimulation, muscle electrostimulation, EMG

Manual and automatic threshold control for EMG with triggered electrostimulation

Optical display of EMG or electrostimulation current as numerical value and graph bar and also acoustical indication

Designed for use in a wide range of applications in physiotherapy, sports, rehabilitation, continence and stroke therapy

Custom programs enabling up to 5 phases to be set up in one program with possibility for full parameter setting

Optional PC software Neurotrac with patients database, real time display of waveforms, data archive, comparison charts, automatic creation of reports, data statistical analysis, prints (with PC printer)

Used as a learning tool with emphasis on improving treatment protocols using EMG and neuromuscular electrostimulation

Portable, light and user friendly

Ready to use therapy programs with preconfigured therapy parameters organized in applications categories

Suggested therapy protocols (download from Attached Files)

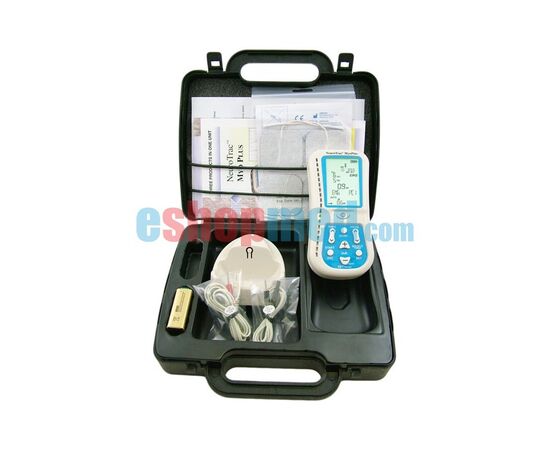

Includes carrying case, desktop stand, cables, batteries, adhesive electrodes, user manual

Programs
Urology
Sports
Rehabilitation
Fitness
Aesthetics
Custom program

Specifications EMG
Single channel
EMG range: 0.2 to 2000uV RMS (continuous)
Sensitivity: 0.1uV RMS
Accuracy: 4%
Selectable bandpass filter
Notch filter 50Hz for mains
CMRR: 130dB
Battery: PP3 Alkaline
Work/Rest periods: 2-99 seconds
Number of trials: 1-99

Specifications Electrostimulation
Single channel
Amplitude: 0-90mA (500 Ohm load)
Constant current, maximum voltage 70Volts
Waveform: symmetrical, rectangular, bi-phasic with net zero DC
Pulse width: 50-450usec
Pulse rate: 2-100Hz
Work/Rest periods: 2-99 sec
Time: 1-99 minutes
Ramp up time: 0.1-9.9 sec
Preset and user programmable treatment programs
Automatic switch off when open electrode detected

Specifications Unit
Low battery indication, automatic switch off
Dimensions 147x70x28.9mm
Weight: 0.13kg, 0.17kg with battery
