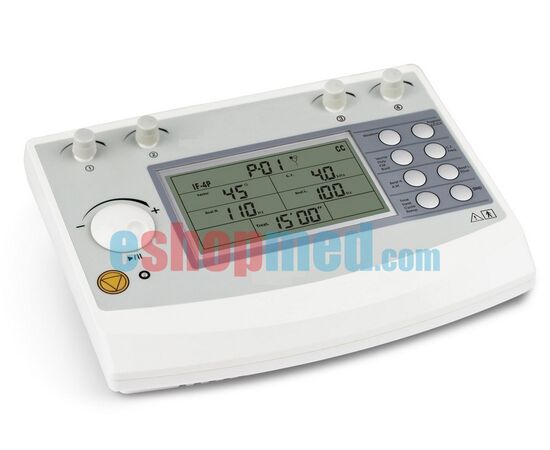

BME0091 Electrotherapy Unit 4-Fully Independent Channels 5-Types of Currents

The BME0091 is a digital, complete, clinical physiotherapeutic device for electrotherapy with 4 independent current channels for therapy to the same patient or two different patients and 5 different types of current. It is a clinical, desktop unit, suitable also for portable use due to its limited dimensions and weight. It has beautiful, modern design and incorporates functions and possibilities of much higher price models of the market. It constitutes a valuable partner for every physiotherapist that wants a fully loaded device of electrotherapy, with the best specifications and high product quality. This combination of advantages makes it the best choice in the market, in regard to other portable physiotherapy equipment that you can meet. It is very user friendly with its big 11.3x6.3cm LCD screen with backlight where all the parameters are displayed and with its keyboard with touch-buttons and knobs. It features a digitally system for self-diagnosis during the start up of the unit.

Electrotherapy Features
- 4 independent electrostimulation channels with separate choice of type of current and parameters per 2 channels and independent intensity adjustment on all channels
- 5 types of current: IF-4P (four-pole interferential), IF-2P (two-pole interferential), TENS asymmetrical biphasic, EMS synchronous and asynchronous and Russian synchronous and asynchronous
- Digitally displayed parameters and timer max 60min
- 50 therapy protocols with preconfigured parameters with the possibility to change them
- Ability to adjust all parameters in all current types:
IF-4P: 0°-15°-30°-45°-60°-75°-90° vector or automatic percentage adjustment, 4KHz carrier frequency, 1-150Hz fixed modulation frequency or variable modulation frequency in any range between 1 and 150Hz
IF-2P: 4KHz carrier frequency, 1-150Hz fixed modulation frequency or variable modulation frequency in any range between 1 and 150Hz
TENS monophasic: 1-250Hz fixed frequency, 0-249Hz frequency modulation, 0-10Hz burst frequency, 0-100% amplitude modulation, 30-400μsec pulse width, continuous and 4/4-4/8-7/7-5/5-4/12-10/10-10/20-10/30-10/50(stimulation time/pause time) pulsed stimulation
Russian: 2.5kHz carrier frequency, 20-100Hz modulation frequency, 10-20-30-40-50% duty cycle, continuous and 5/5-4/12-10/10-10/20-10/30-10/50(stimulation time/pause time) pulsed stimulation, ramp time 1-2-5sec
EMS: 1-250Hz fixed frequency, 0-249Hz frequency modulation, 0-100% amplitude modulation, 30-400μsec pulse width, continuous and 4/4-4/8-7/7-5/5-4/12-10/10-10/20-10/30-10/50(stimulation time/pause time) pulsed stimulation, ramp time 1-2-5sec
- CC (Constant Current) or CV (Constant Voltage) therapy
- Output detection function that turns off intensity in case of electrode or lead open circuit
- Can be connected to vacuum unit

Specifications:
- Power supply: Adaptor, input 100~240V 47/63Hz, output 15V/1.2A
- Dimensions: 250x185x82mm(LxWxH)
- Weight: 1kg w/o power supply

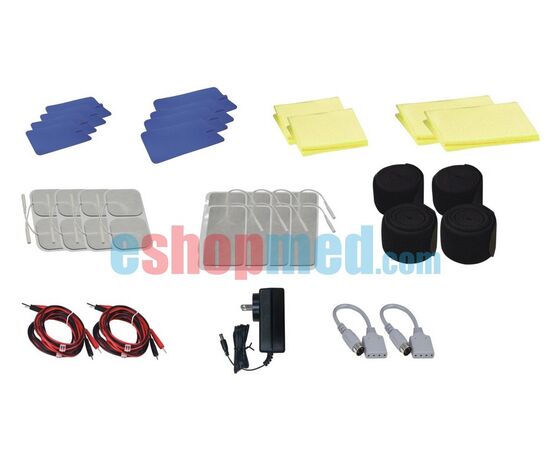

Standard accessories:
4 x Plate electrodes 60x90mm
4 x Plate electrodes 70x110mm
4 x Viscose covers 70x100mm
4 x Viscose covers 80x120mm
8 x Adhesive electrodes 50x50mm
8 x Adhesive electrodes 50x100mm
2 x Elastic velcro strap 75x1200mm
2 x Elastic velcro strap 75x600mm
4 x Electrodes cables pin-2mm (black/red)
1 x Power supply
2 x Patient lead cable for electrotherapy
1 x User manual
