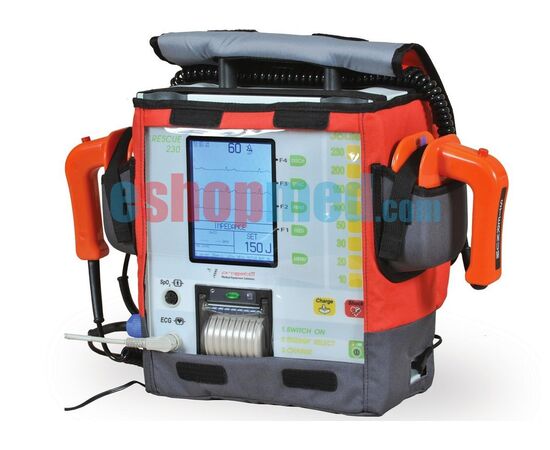

RESCUE 230 Manual External Defibrillator

Professional external biphasic defibrillator with 4-channel ECG and embedded thermal printer

Rescue 230 offers an economical, yet complete, approach for professional defibrillation system. It incorporates all the necessary characteristics at the basic version, such as large LCD graphic display 5,7", thermal printer and 4-channel ECG making it well suited for hospital and ambulatory use.

It employs exceptional characteristics, such as short charge time of 5 second at 230 Joules, large capacity for 100 shock at maximum energy, synchronous and asynchronous defibrillation as well as automatic print pre and post shock, offering a competitive solution in comparison with more expensive systems.

Especially easy operation via predefined function key at the front panel; for energy selection and all basic operations.

Also, along with the optional upgrade modules for AED, external pacemaker and SpO2 can be used as a complete defibrillator-monitor system.

Specifications:
- BTE (biphasic truncated exponential) discharge system
- Advisory and semi-automatic function(AED) according to AAMI DF 39
- Text messages on screen guide user through rescue procedure
- Energy selection: 2-230 Joule directly from the front panel (2-10 in 1 Joule steps, 10-230 in 5 Joule steps)
- Charge time: 5 seconds at 230 Joules with fully charged battery
- Autonomy: 100 shocks at 230 Joules with fully charged battery
- Charge/discharges: Controlled from paddles
- Defibrillation: Asynchronous or synchronous with "R" wave
- Display:
- 5,7" LCD backlit, 320x240pixel resolution
- Illustration: ECG trace (1-channel through paddles, 6-channel: I, II, III, aVR, aVL, aVF, through 4-lead cable), SpO2 waveform and values, energy selection, functional messages
- Automatic ECG change over when plugging patient cable
- Filters: Mains 50/60Hz, base line, low pass
- Heart rate indicator
- ECG monitoring:
- Bandwidth: 0,5 to 140Hz (-3dB) with filters disabled
- Velocity: 5, 12.5, 25mm/s
- Gain: 5, 10, 20mm/mV
- HR digital readout on the display from 20 to 300bpm (± 2%)
- Alarm: Adjustable from 20 to 250bpm
- Printer:
- Intergraded thermal printer for ECG traces and event's documentation hardcopy including SpO2 level in %
- Paper speed:  5, 10, 25 mm/sec
- Paper width: 58mm
- Operating mode: Manual or automatic (10 second pre and post shock recording)
- AED mode(Optional):
- Energy: 150 Joule fixed
- Protocols: AHA 2005 CPR guidelines
- Analysis time: 12 second maximum
- Shockable rhythms: ventricular fibrillation (VF) with amplitude >1000μV, ventricular tachycardia (VT) with rate >150bpm
- Pulse Oximetry (SpO2)(Optional):
- Oxygen saturation range: 0-100%
- Pulse rate range: 10 to 300bpm
- Accuracy: 70-100% ± 2 digits with adult sensor
- Alarm: Minimum 65%
- External pacemaker(Optional):
 - Rectangular wave
- Pulse duration: 22ms
- Pulse intensity: 150mA maximum
- Pulse amplitude: 150V maximum
- Operating mode: Fixed or on demand
- Power supply:
- Internal rechargeable high capacity Ni-MH with fast charge time
- Charge time: approximately 2 hours for 95% charge
- Power adapter-charger: 100-230V, 50/60Hz
- Operating environment:
- Operating temperature: 0 to 55°C
- Storage temperature: -20 έως 65°C
- Relative humidity: 15 έως 80%
- Waterproof: IPX4
- Safety characteristics:
- Defibrillation via two buttons
- ECG input isolation class CF
- Internal discharge after 30 seconds
- Dimensions: 340x260x130mm
- Weight: 5,5kg
