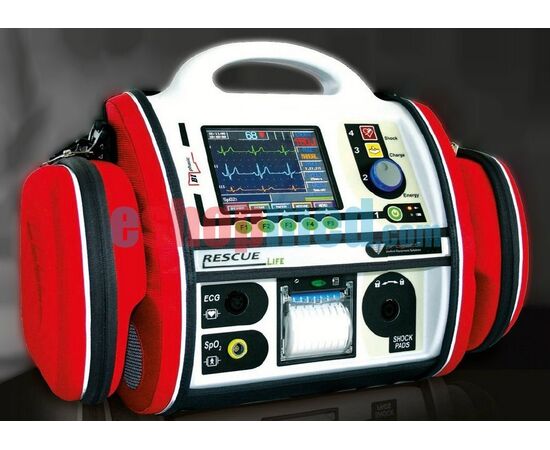

RESCUE Life Manual and Semiautomatic Defibrillator with Monitor

Professional external biphasic defibrillator with embodied semi-automatic(AED) function and monitor with surplus options at the best market price.

The combined defibrillator monitor Rescue Life is designed to be used by out-of-hospital and hospital users. Having an innovative and fully featured design, it provides for defibrillation and monitoring in a single portable device.

Brilliant, high contrast, wide-angle TFT LCD colour display allows the simultaneous visualization of up to 3 ECG channels. Information such as heart rate, SpO2 value, alarms and operational functions are clearly visible on the display even in low visibility conditions. In AED or Advisory mode, text messages and voice prompts guide the operator during the CPR operations.

Rescue Life is impact proof, compact and lightweight. The dedicated comfortable and washable carrying bag keeps all the accessories at hand and protects Rescue Life during the emergency procedures. The case is built with washable materials and has a comfortable handle for safe transportation. The paddles have dedicated seat on the back of Rescue Life with a fast hook-unhook procedure. The IPX4 standard permits the operation under adverse climatic situations.

Rescue Life includes manual, AED and Advisory operation modes allowing the best use in different situations. It is designed to be used by doctors and trained individuals. The manual mode provides very easy three steps operation: energy selection from 1-230J, energy charge and shock. In AED mode, the voice prompts and display messages are assisting the operator during CPR operations, charging automatically to 150J when a shockable ECG rhythm is detected. In Advisory mode, the system alerts when the shock is necessary (using voice prompts and display messages) leaving the energy level and charging choice to the operator.

The Rescue Life defibrillator uses a biphasic truncated exponentia(BTE) waveform with the HiCap technology which brings the benefits of current controlled systems but with higher reliability. Controlling the waveform duration based on the body impedance measurement, the Rescue Life is able to maintain the ideal duration, peak current and voltage of the debrillation shock. The optimal biphasic waveform adopted by Rescue Life provides the confidence of the first shock success without the need for escalating energy

Specifications:
-Dimensions: 369x240x340mm
-Weight: 5,5Kg with battery
-Power supply: Mains 100-240VAC, 50/60 Hz, internal rechargeable 14.4V/2Ah NiMh battery, inverter 12V car
adapter(optional)
-Capacity: 100 shocks at 230J with battery fully charged

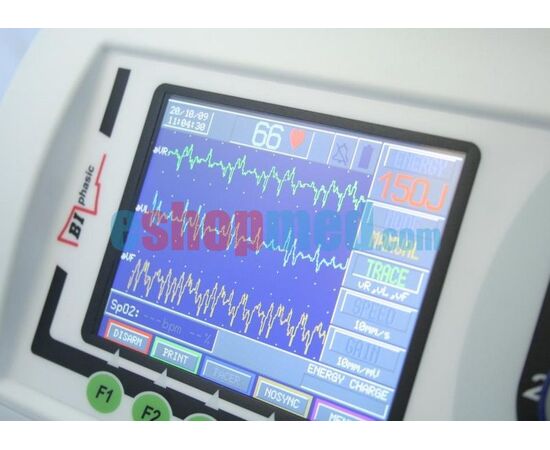

-Display type: High contrast TFT color LCD 5.7”(320 x 240 pixels)
-Display information: Operational information, ECG traces, Spo2 value, parameters, Heart Rate indicator, filters,
alarms and battery status
-Software: Voice and texts multilanguage
-Memory: Internal flash 2 Gb up to 300 hrs of ECG data, events and usage review
-Temperature: Operational -5°~55°C, Storage -20°~70°C
-Relative humidity: 10~95%
-Isolation: ECG type CF, Defibrillation type BF
-Water proof: Class IPX4
-Conformity: Standard IEC 60601-2-4, IEC 60601-1, IEC 60601-1-2, Class II, type BF
-CE mark: EEC93/42 Medical device, class IIb
-Defibrillation:
-Waveform: Bipashic Truncated Exponential(BTE), HiCAP technology(Large storage capacitor)
-Impedance: Compensated, range 25 - 200 Ohm
-Charge time: <6sec for 230Joule with battery fully charged
-AED mode:
-Energy: Fixed energy at 150 J
-Protocol:AHA 2005 CPR Guidelines with voice and text prompts
-Shockable rhythms: VF with amplitude >100μV and VT with rhythm >150bpm
-Sensitivity: Shockable rhythm-VF >95%, Shockable rhythm-VT >75%
-Specificity: According to AHA 2010, Normal sinusoidal rhythm >99%, Asystole and other non-shockable
rhythms >95%
-Manual mode:
-Energy range: 1-230Joule (from 1-10Joule in 1Joule steps, from 10 to 230Joule in 10Joule steps)
-Commands: Multifunction trim knob. Charge and shock button directly in the front panel for hands free defibrillation

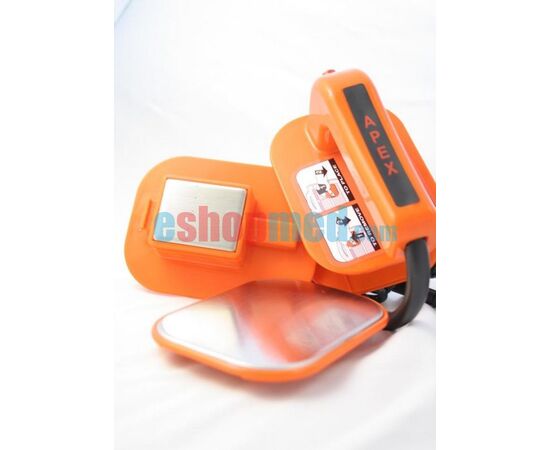

-Paddles: Reusable adult and pediatric defi paddles with charge/shock command. Disposable defi pads and
internal defi paddles (optional)
-Operating mode: ECG «R» wave synchro or asynchro mode
-Indicators: Battery and main led indicators, clear and visible backlight color buttons
-ECG monitoring:
-Bandwidth: 0.5-120Hz(-3 db) with filters off
-CMRR: >90db
-Input impedance: >20MΩ

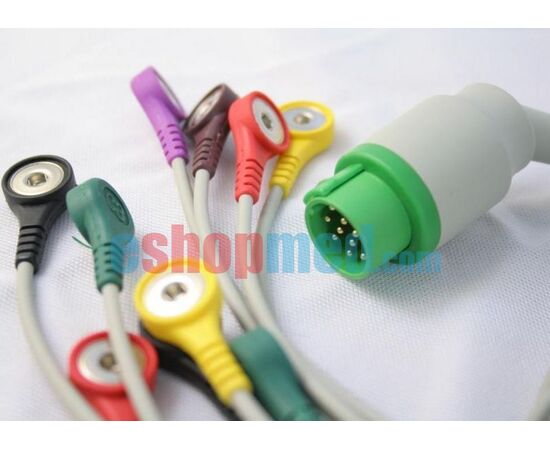

-Input Patient cable: 3 leads (I,II,III)(standard), Patient cable 5 leads (I,II,III,aVL,aVR,aVF)(optional),
Patient cable 10 leads(12 channels ECG)(optional)
-Gain: 5,10,20 mm/mV with patient cable. Auto with pads
-Velocity: 5, 10, 25, 50mm/sec
-Filters: 50/60 Hz, EMG Filter, base line
-HR range: 20- 00bpm(~2%), digital readout on the display
-Alarm: HR max. settable 250 bpm, HR min 20 bpm
-Printer:
-Type: Integrated thermal printer for ECG traces and events documentation hardcopy including HR/SpO2 values
-Paper speed: 5,10,25mm/sec
-Paper width: 58mm
-Operating mode: Manual, automatic(10” pre and post shock recording)
-External pacemaker(optional):
-Type: rectangular wave
-Operating mode: Fixed on demand
-Pulse rate: 0ppm to 180ppm, adjustable in steps of 5ppm
-Impulse duration: 22ms
-Pulse current: 0 to 150mA, adjustable
-Amplitude: Max. 150V
-SoO2(optional):
-SpO2 range: 0-100%
-HR range: 18-300ppm
-Accuracy: 70-100%(~ 2% for adults with finger clip sensor)
-Alarm: Adjustable min 65%
