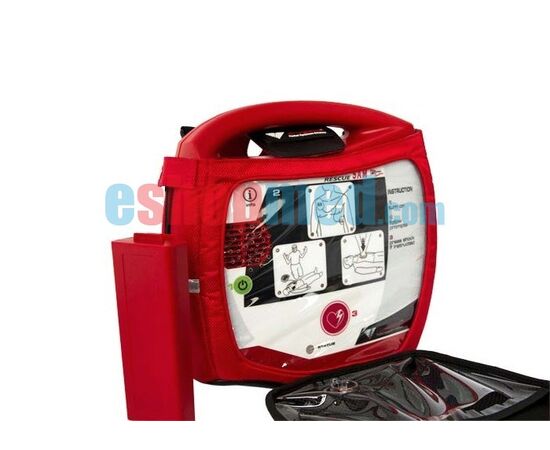

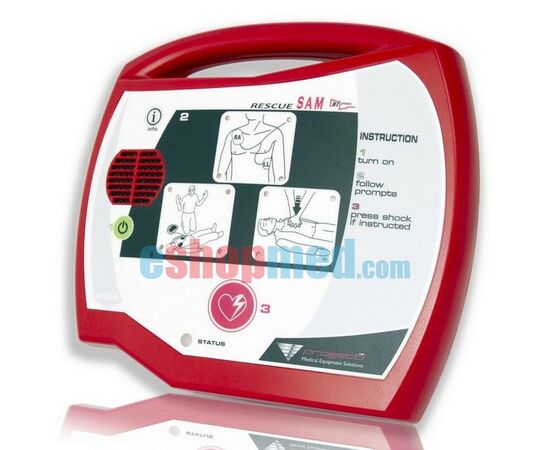

RESCUE SAM Biphasic Automated External Defibrillator with Carrying Bag

RESCUE SAM is designed to treat Fast Ventricular Tachycardia(VT) and Ventricular Fibrillation(VF) which is a lethal heart rythm and the most common cause of Sudden Cardiac Arrest(SDA) and needs to be treated in short period of time. The treatmeant is the delivery of an electric shock throught the heart muscle known as defibrillation which helps to re-establish normal sinus rythm.

The RESCUE SAM is a semi-automatic external defibrillator ("AED") that is designed to be easy to use, portable and battery powered.

Voice promts and visual indicators provide a simple interface for the operator. The RESCUE SAM is capable of recording event information including ECG and SHOCK/NO SHOCK recommendations.

When connected to a patient that is unconscious and not breathing, the RESCUE SAM performs the following tasks:

-Promts the operator to take necessary actions to enable analysis
-Automatically analyzes the patient's ECG
-Determines whether a shockable rythm is present
-Charges the defibrillation capacitor and arm the SHOCK button if it detects a shockable rythm
-Prompts the operator to press the SHOCK button when the device is ready and a shock is recommended
-Delivers a shock once the device has determined a shock is required and the SHOCK button has been pressed
-Repeats the process if additional shock are required

The RESCUE SAM will NOT shock a patient automatically; it will only advise the operator. The SHOCK button is enabled only when a shockable rhythm is detected and the device is charged and ready to shock. Charging occurs automatically when the device detects a shockable rhythm. The operator must press the SHOCK button to initiate defibrillation

The RESCUE SAM uses two self-adhesive defibrillation/monitoring pads to monitor ECG signals and, if necessary, to deliver defibrillation energy to the patient. These pads (also known as electrodes) are provided in a single-use, disposable package

The RESCUE SAM determines proper pad-to-patient contact by monitoring the impedance between the two pads (impedance varies with the electrical resistance of the patient’s body). Visual and audio prompts inform the operator of possible problems with patient contact. Voice prompts and visual indicators communicate the status of the AED and of the patient to the operator. The RESCUE SAM has two operational push-button controls, one info-button ans several LED indicators

Defibrillation energy is delivered as an impedance compensated biphasic truncated exponential waveform. The device delivers 200Joules into a 50Ω load when using adult pads or when using attenuated child / infant pads, 50Joule of defibrillation energy into a 50Ω load. Energy delivered does not change significantly with patient impedance, although the duration of the generated waveform will vary. The RESCUE SAM is designed to deliver up to 200Joule of defibrillation energy through a patient impedance range of 25–175Ω

Defibrillation and AED operating power is supplied by a replaceable (non-rechargeable) lithium battery pack that provides for long standby life and low maintenance operation. Each pack is marked with an expiration date

The RESCUE SAM records event documentation on its internal memory

Specifications:
-Operating mode: Semi-automatic
-Waveform: BTE (biphasic truncated exponential type), impedance compensated
-Energy: 200Joule fixed as new norms AHA 2010
-adult: Nominal 200Joule into a 50Ω load
-infant/children: Less than 50J using optional attenuated pediatric pads
-Shock energy accurancy: According to IEC EN60601-2-4
-Shock-to-Shock cycle time: Typically less than 20 seconds
-Protocol: Voice prompts and indicators guide user through protocol
-Charge control: automatic by software (arrhythmia detection system and charging control)
-Charge time from “SHOCK ADVISED”: 8 seconds, typical with new battery
-Voice instructions: Detailed voice messages guide responder through use of the defibrillator
-Controls: Shock button, info-button, On/Off button
-Indicators: LEDs (different colors), info-button
-Charge complete indicator: Voice prompts (press the shock red button) and flashing red shock button
-Disarm: Once charged, the RESCUE SAM disarms if patient’s heart rhythm changes to non-shockable rhythm, or the
SHOCK button is not pressed within 15 seconds after being armed, or the power ON/OFF button is pressed to turn off, or
the defibrillator pads are removed from the patient or the pads connector is disconnected
-Shock delivery: Shock is delivered if the SHOCK button is pressed while the defibrillator is armed
-Shock delivery vector: Via adult defibrillator pads in the anterior-anterior(Lead II) position or via reduced-energy
pediatric pads in the anterior-posterior position
-Patient isolation: type BF
-Battery: 12V DC, 4.2Ah, lithium manganese dioxide, disposable long-life
-Battery capacity: min. 200 shocks or 4 hours of operating time continuous
-Automated and user-activated selftests:
-Daily Self-tests: tests internal circuitry, waveform delivery system, battery capacity, and software
-Battery Insertion Test: upon battery insertion, extensive automatic self-tests and user-interactive test check
device readiness.
-Data recording and transmission:
-Optional special battery pack for data transmission
-Data stored: first 60 minutes of ECG and the entire incident’s events and analysis decision
-Size: 80x300x270 mm
-Weight: 2.2 kg with battery pack installed

Standard Accessories:
1x Set dispossable adult pads
1x Lithium manganese dioxide battery long life

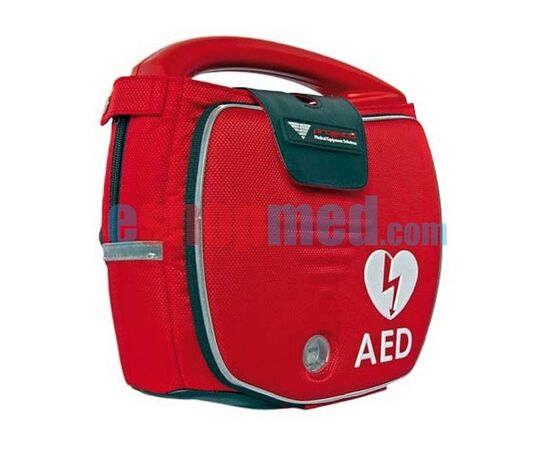

1x Carrying bag
1x User manual
