Suzuken Kenz Cardico PC-1201, 12 channel PC-Based Electrocardiograph

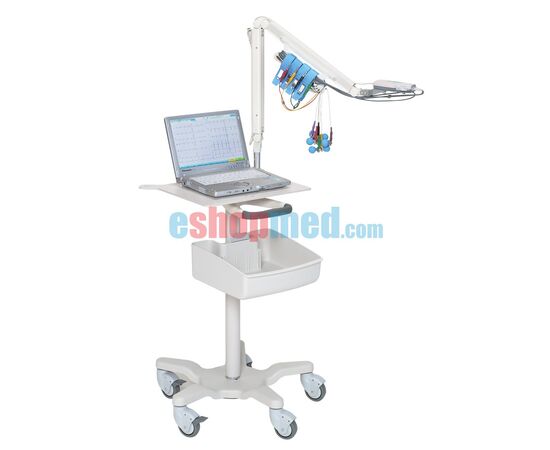

Suzuken Kenz Cardico 1201 is an advanced PC-based 12-channel resting ECG suitable for completely mobile operation in conjunction with a portable PC.

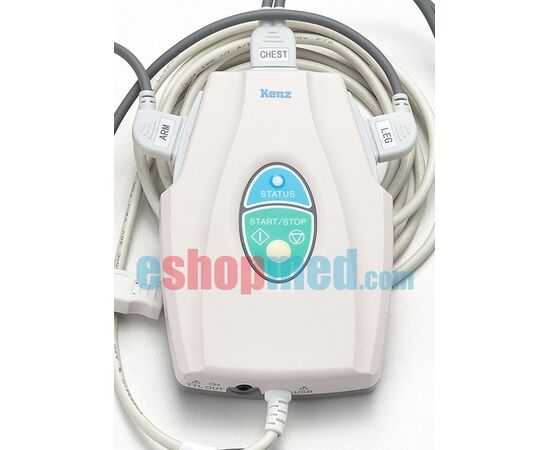

Extremely easy operation with just one key on the acquisition module to start/stop the examination and visible confirmation of proper electrode contact through status LED indicator, while the rest of the functions are controlled through the PC.

Suzuken Kenz Cardico 1201 can offers extensive performance capabilities based upon PC characteristics, such as data transmission through local network and unlimited examinations storage with approximately 1.000 ECGs/GB.

The software can be extensively customized by the user to set all parameters to fit own preferences, such as ECG display format and color, printout format and color. Additionally, the user can set the content of the printout report for each one of the operating modes. Furthermore, the system incorporates self test/maintenance menu to check the proper operation of the system and the peripherals.

Versatile functions for the ease of the user, such as ability to freeze the display and print the specific ECG and automatic record time elongation in case there is some arrhythmia detected.

Such as all of the Suzuken Kenz Cardico devices, the PC-based offers powerful analysis capabilities with option to print ECG interpretation, grade judgment, Minnesota codes and comment regarding the findings.

The Suzuken Kenz Cardico 1201 offers three operating modes for extended flexibility from simple examination to special analysis operations:

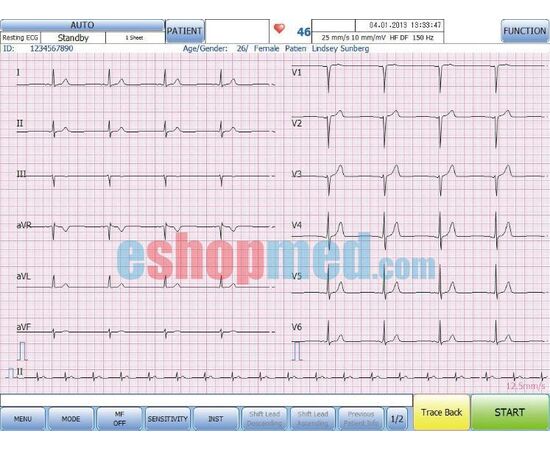

Auto Mode

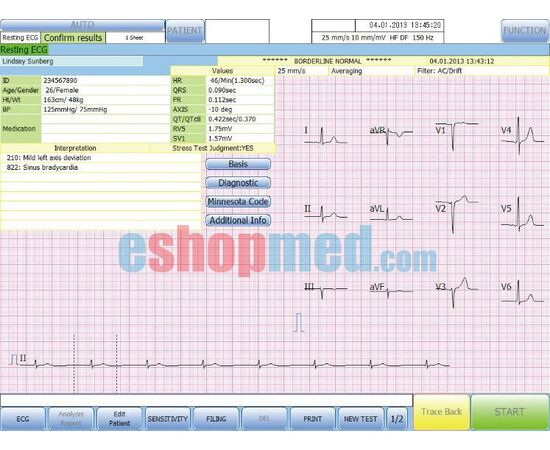

In Auto Mode the device records the leads for a predefined duration and interprets the ECG with ability to view and/or print analysis results, comments, judgment grade, Minnesota code and measurements of all parameters. Additionally, there is the option for post stress test recording in up to 10 user defined intervals.

Pre-Check Mode
In Pre-Check Mode the device monitors the patient's ECG and starts recording upon the detection of arrhythmia, offering additionally all the functions of the Auto Mode.

Long-Term Mode
In Long-Term Mode offers the ability to perform "Arrhythmia Analysis" or "Autonomous Nervous System Test".

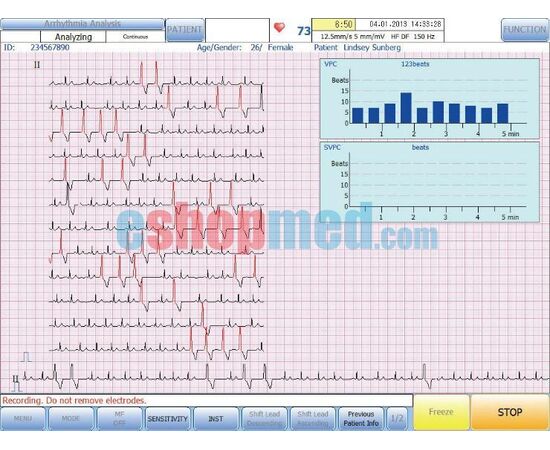

With "Arrhythmia Analysis" the device records the set lead for a user defined period and then analyses the ECG for ventricular premature contraction, supraventricular premature contraction, and atrial fibrillation.

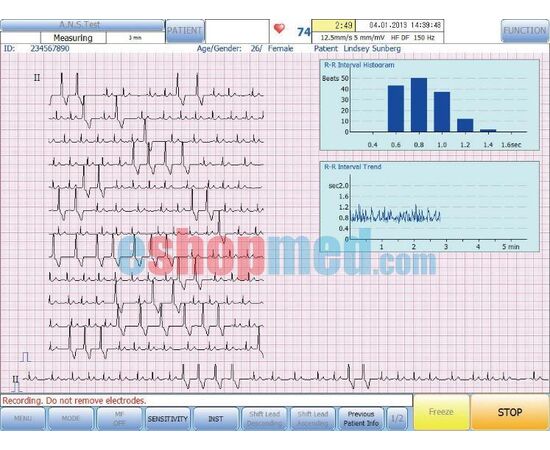

With "Autonomous Nervous System Test", the device records the data from the set lead for a user-defined period or number of beats and then analyses the data and gives as results RR trend, RR histogram, RR interval measurement value.

Specifications

<Input>
Input Impedance: Over 10MΩ
Leads: Standard 12 leads and Cabrera leads simultaneous acquisition
Patient Input: One patient
Common Mode Rejection: Over 100dB
Polarization Voltage: Over ± 500mV
Frequency Response: 0.5 to 100Hz 90 to 100%, 101 to 150Hz 70 to 110%
Time Constant: Over 3.2 sec.
Filter: Digital filter AC, Drift, Muscle (35/25 Hz)
A/D Conversion: 13 bit
Sampling Rate: 1ms (1.000 samples per second)
Defibrillator protection: To 5.000V, 400J
<System Requirements>
Computer: PC/AT compatible with USB port
OS: Windows 7™ (32,64bit)
CPU: Intel™ Atom™ or greater
Main memory: 1GB or greater
Hard disk: 32GB or greater
Interface: USB 2.0 or greater
LAN: LAN or wireless LAN
PC must be with CE marking
<Languages>
Software languages: English, Chinese and Russian
<Peripherals>
Magnetic card reader and barcode reader can be connected for entering patient demographic data.
<Safety>
Safety: Class I
Water Proof Protection: Non water proof device (IPXO)
Flammable anesthetic gas protection: Not applicable
Mode of Operation: Continuous operation
<Power Supply>
Power source: DC 5V, 1.5W
<Size>
Dimension: 90mm(W) × 130mm(D) × 26mm(H)
Weight: Approx. 0,8 kg
<Operating Conditions>
Temperature: 10 to 40°C
Humidity: 25 to 95% RH (Without dew condensation)
Pressure: 700 to 1060 hPa
<Transport and Storage Conditions>
Temperature: -10 to 60°C
Humidity: 25 to 90% RH (Without dew condensation)
Pressure: 700 to 1060 hPa

Standard Accessories

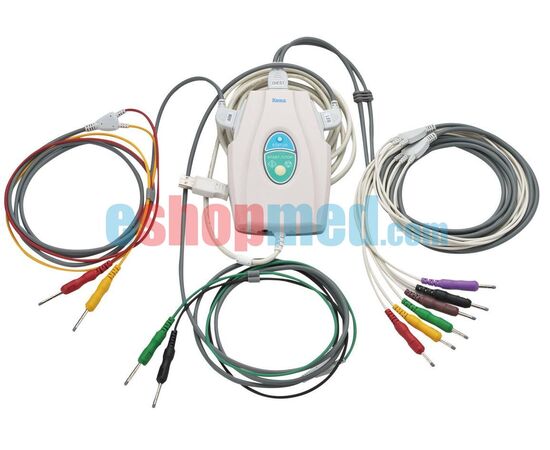

1 x ECG acquisition module
1 x Software installation CD-ROM
4 x Limb Electrodes
6 x Chest Electrodes
1 x ECG cream
1 x CD with operation manual and physicians criteria guide

PC is not included
