RESEARCH RING

LAB ON A FINGER

Revolutionary Ring Delivers Lab-grade Physiological Data
wearable + mobile app + cloud platform + integration

EDA, PPG, Temperature, Accelerometry, and ECG captured from a single, user-friendly device with long battery life

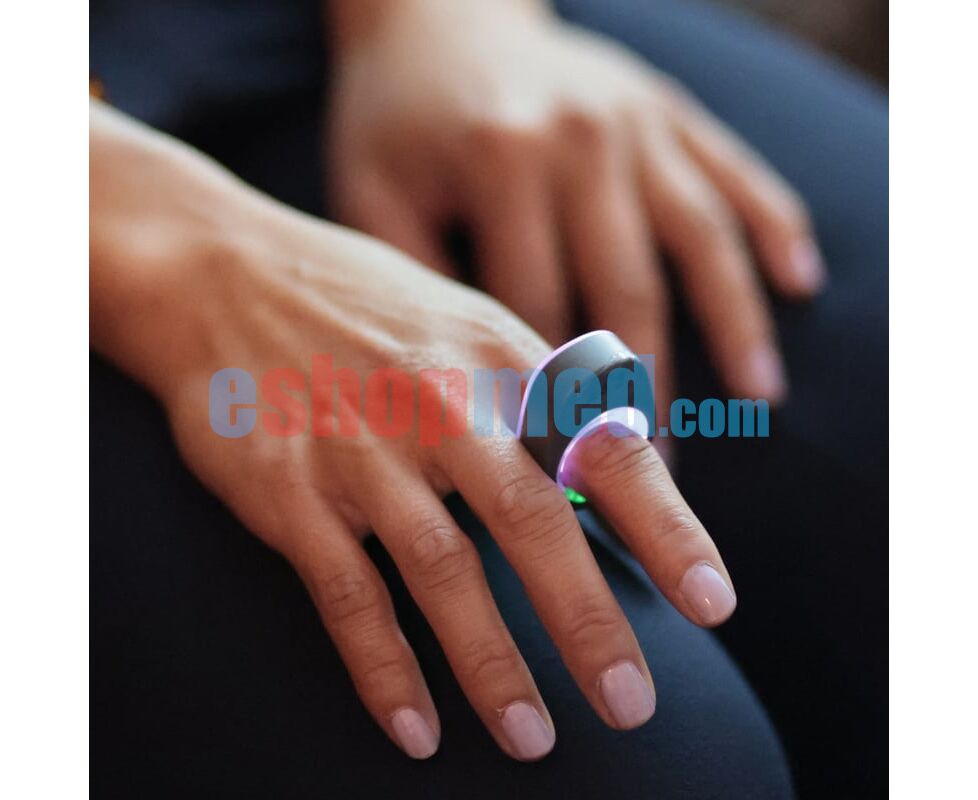

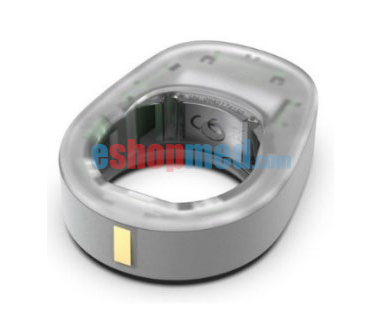

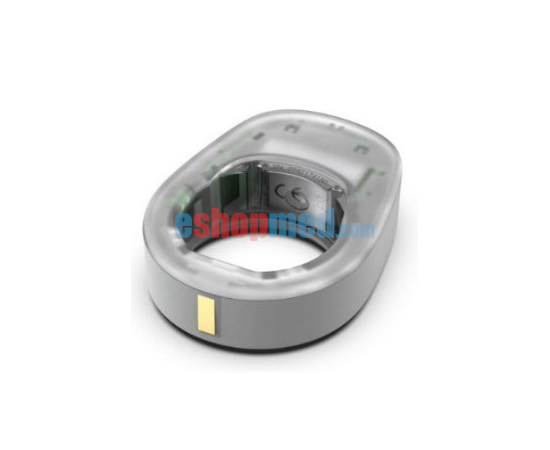

The Research Ring is a revolutionary research platform that enables the capture of high-quality data from numerous physiological signals on a single, small, user-friendly device. The Research Ring collects research-grade data in a friendly form factor: electrodermal activity (EDA/GSR), pulse (with an optical sensor), temperature, and when second point of contact is made, electrocardiogram‡ (ECG). Stream continuous HD data from all channels, including raw data. Data is automatically uploaded to the cloud for analysis and can be synchronized with AcqKnowledge in real time or imported into AcqKnowledge asynchronously from the cloud.

• ELECTRODERMAL DATA The first ring form factor device that captures lab-quality electrodermal activity (EDA), enabling new types of research
• PULSE Capture photoplethysmography (PPG) data
• TEMPERATURE Body temp measured at the finger
• ACCELEROMETRY Measure body movement using ring’s IMU
• ELECTROCARDIOGRAM^‡ Available when second point of contact is made (for continuous ECG, use Research Ring with ECG Lead Kit)

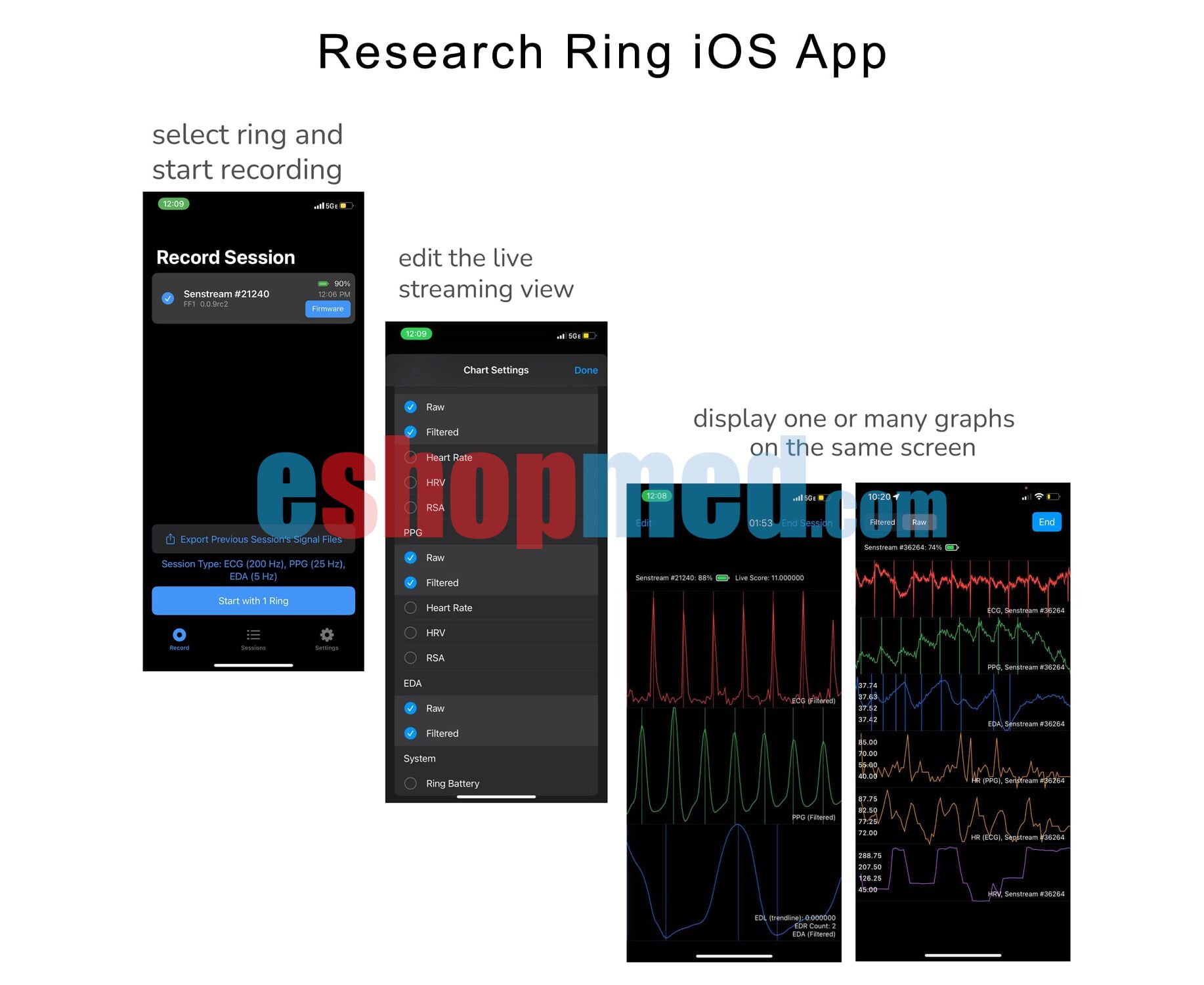

• MOBILE AND CLOUD APPS Start capturing data with just a ring and iPhone app, which seamlessly connects to the cloud
• BIOPAC INTEGRATION^* Use with AcqKnowledge Research Ring Software for Windows to record in real time or import into AcqKnowledge from the cloud

THE RESEARCH RING GIVES RESEARCHERS NEW POSSIBILITIES!

The Research Ring allows researchers to gather physiological and other data “in the wild,” in everyday settings with their study participants. This has generally not been feasible because data acquisition hardware and software has historically required large, computer-connected signal acquisition systems, and lab-friendly (but not user-friendly) systems, cables, sensors and software. While more portable systems have evolved, the problem with many of them is that they do not capture high-quality data that researchers can use for peer-reviewed studies.

• EDA: Gold-plated dry electrodes—no electrolyte required, Sampling rate up to 400 Hz
• PPG: Dual green LEDs + frequency tuned photosensors, Module output and peak picking in the app, Sampling rate up to 400 Hz
  • Peak wavelength for LED is 527 nm, for photodiodes (with “green” filters) is 550 nm
• ECG^‡: Gold-plated dry electrodes, Sampling rate up to 800 Hz
• Temperature

Features & Benefits | Senstream Ring iOS app v1.1 and Firmware v1.2
Formally available only for iOS and iPadOS

Specified AcqKnowledge functionality requires AcqKnowledge Research Ring Software for Windows

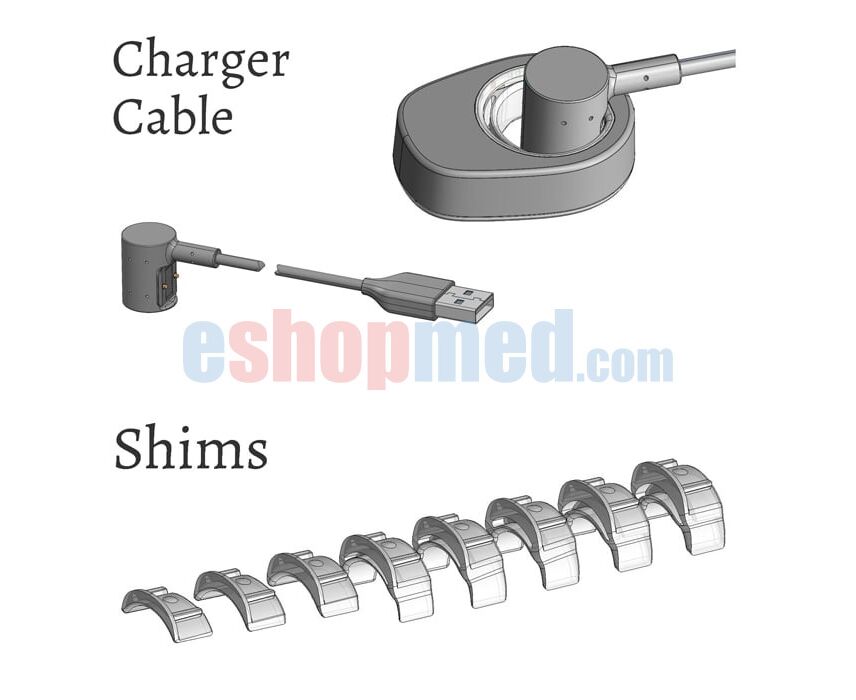

• Comfortable, Adjustable Ring Lightweight, adjusts to different finger sizes
• Research-quality Data Collect EDA, PPG, Temp, and ECG^‡ plus derived signals
• Collect Data Anywhere Lab, work, home, school, in the wild
• Collect Data from Single or Multiple Participants Connect 9 rings to a single iOS device or computer running AcqKnowledge
  • Start and host all sessions simultaneously using AcqKnowledge
  • Add iOS devices or computers to record from more rings
• Customize Data with Selectable Modes Select signals and sample rates
• BLE Communications Collect and stream to iPhone, iPad, or AcqKnowledge
• Long Battery life 8 to 15 hours based on sampling rates
• Data Control & Safety User-defined storage choices for session data (GDPR support)
• Greater Session Utility Visible/audible session start signal; In-session time-stamp markers
• More Data Channels X,Y,Z accelerometer data exposed
• Trust & Stability Greater iOS background session stability; Ring auto rejoin; Improved chart accuracy
• Integrates with BIOPAC Devices Add signals for comprehensive physiology monitoring
• Streams to AcqKnowledge Ring Software for Windows Real-time data viewing, access, and analysis
• AcqKnowledge In-lab Video Integration Add up to 8 Cameras and synchronize data in AcqKnowledge

Applications | Longitudinal, real-world, and in-lab studies

• Psychophysiology
• Lifestyle – stress, sleep, etc.
• Mental health and wellness
• User experience research
• Consumer insights
• Media and communications
• Longevity and aging
• General health tracking

Use cases

• PTSD monitoring
• Food and mood
• Pain assessment
• Classroom engagement
• Movie and TV engagement
• Meditation and mindfulness
• Sleep monitoring
• Extreme emotions
• Stimulus presentation and VR

If researchers want to study a user’s psychophysiological and other contextual data, they can give the Research Ring to a study participant along with a companion mobile application. This “mobile first” approach is also cloud-friendly. The data is collected on the iPhone and can be immediately stored on the cloud when a data collection session ends. The ring comes with the phone app and a year of Senstream Cloud.

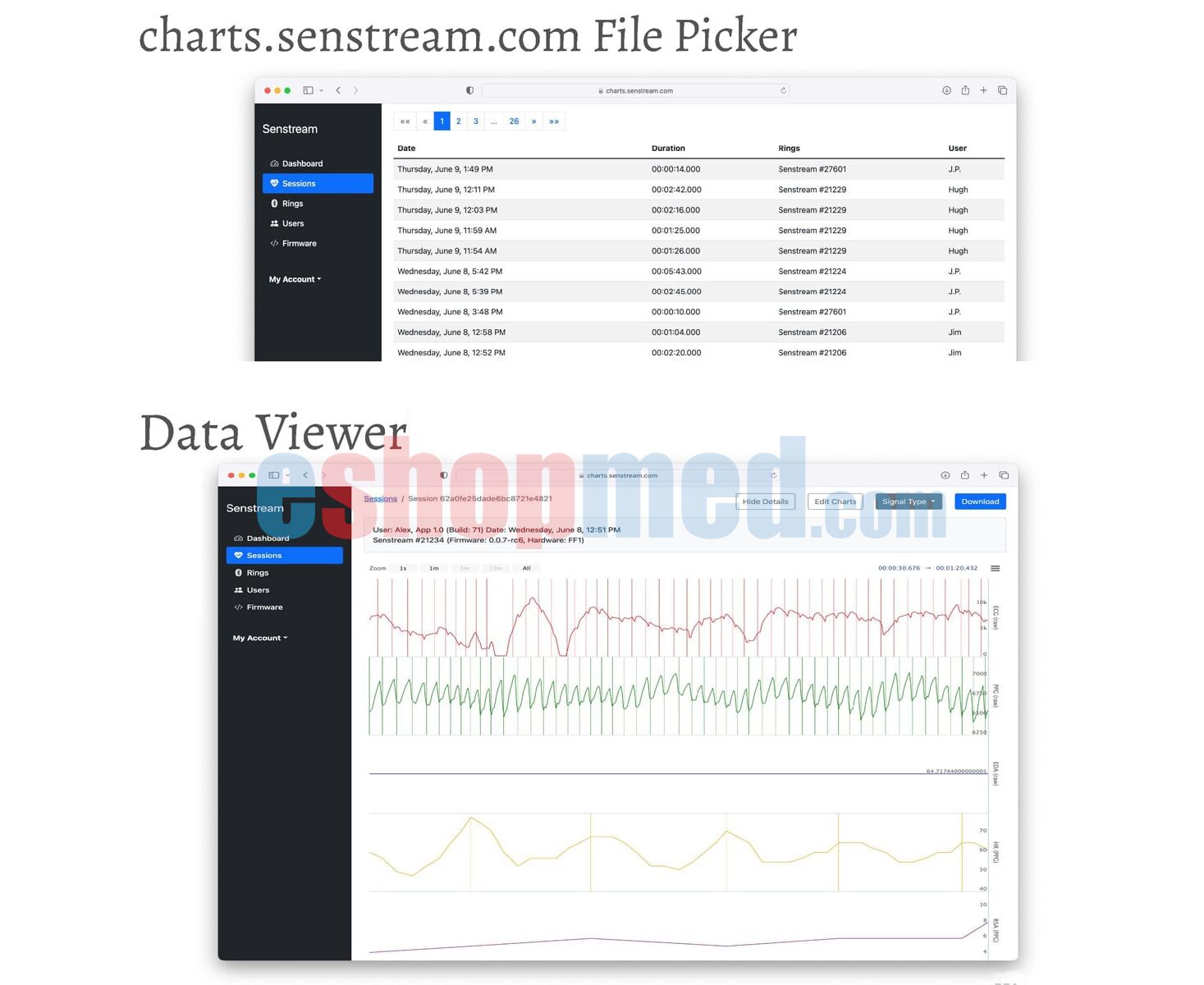

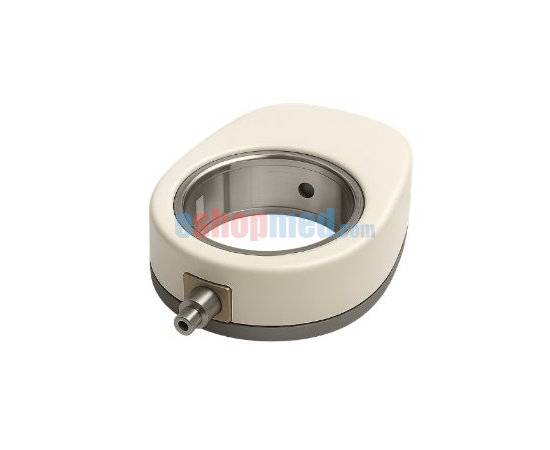

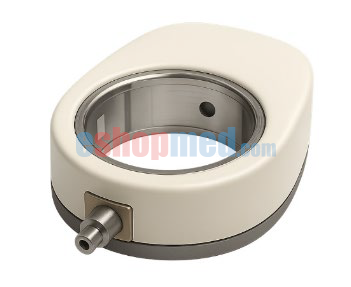

^‡ The Ring’s ECG electrode is designed for brief recordings while the user is seated and relaxed, it is not meant for continuous or long-term monitoring. To get ECG from the standard Research Ring, the gold electrode on the back must touch bare skin on the opposite side of the body. If continuous long-term ECG required, use the new Research Ring with ECG Lead Kit that adds a post to the base of the ring so a cross-body ECG Lead for Research Ring can be connected.

^*BIOPAC INTEGRATION In addition to being a stand-alone research tool, the Research Ring can also be used with AcqKnowledge Research Ring Software for Winodws (ACK100W-RNG) for in-lab applications or to import data acquired from the phone app to the cloud into AcqKnowledge. AcqKnowledge Research Ring Software for Windows can interface up to nine rings per computer and installation also provides a single license for Basic Scripting and Workflow drag-and-drop automation.
